Hydraulic Support Prop for mining support /hydraulic pillar /Prop Parts skype:sunnylh3

FOB Reference Price:Get Latest Price
$5.00 - $200.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
LH
Model Number:
DW
Condition:
New
After-sales Service Provided:
Engineers available to service machinery overseas
Model:
DW35
Max Height:
3500mm
Min Height:
2700mm
Working Stroke:
800mm
Net Weight:
82.8kg
Rated resistance:
150kn
Rated Fluid Pressure:
19.1Mpa
Diameter of oil cylinder:
100mm
The Base Area:
113cm2
Pump Station Pressure:
15or20Mpa
Supply Ability
Supply Ability:
100000 Set/Sets per Year
Packaging & Delivery
Packaging Details
as your requestments
Port
QINGDAO
Lead Time :
Shipped in 3 days after payment

Hydraulic Support Prop for mining support /hydraulic pillar /Prop Parts skype:sunnylh3

Hydraulic Support Prop for mining support /hydraulic pillar /Prop Parts skype:sunnylh3

Product Introduction

  Hydraulic prop increasingly widely used in the production of its traditional wooden pillars supporting metal friction compared with high recovery, supporting safe and reliable, working resistance constant, setting load is high, the use of flexible benefits. Outer single hydraulic prop can be used alone or in combination with metal hinged roof beams supporting the use, can be used in coal seam dip is less than 25. Stope roof gently inclined to pay, but also for mechanized coal face end support or temporary support available.

Technology Parameters

TypeUnitDW35DW31.5DW28DW25DW22DW20DW18DW16DW14DW12DW10DW08DW06
Max Heightmm35003150280025002200200018001600140012001000800600
Min Heightmm27002350200017001440124011101005900792685578485
Working Strokemm800800800800800760690595500408315222145
Net Weightkg82.876.4705855494743.639.936.33226.726.5
Rated resistancekN150200250300
Rated Fluid PressureMpa19.125.531.838.2
The First Sustaining LoadkN118--157
Pump Station PressureMpa15or20
Column LiftingSpeedmm/s≥60
Column DescendingSpeedmm/s≥40
Diameter of oil cylindermm 100
The Base Areacm2113109
Service Substance Coaly(MD10 emulgator)emulgator or emulgator 1-2% emuision

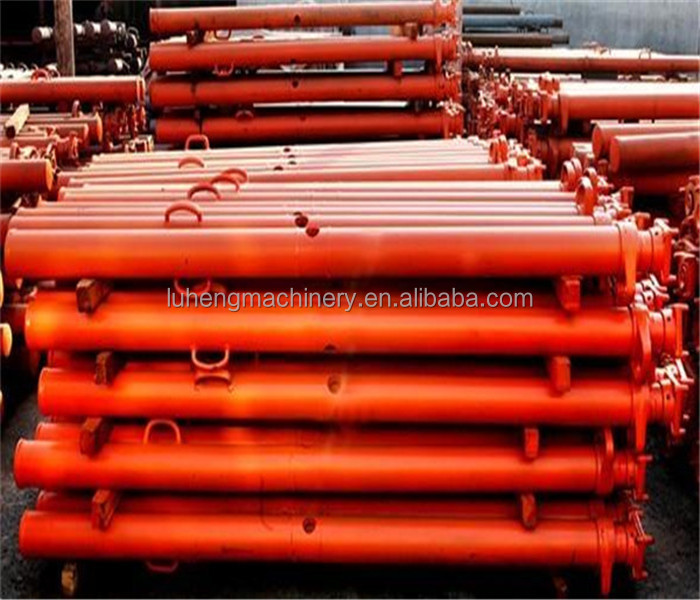

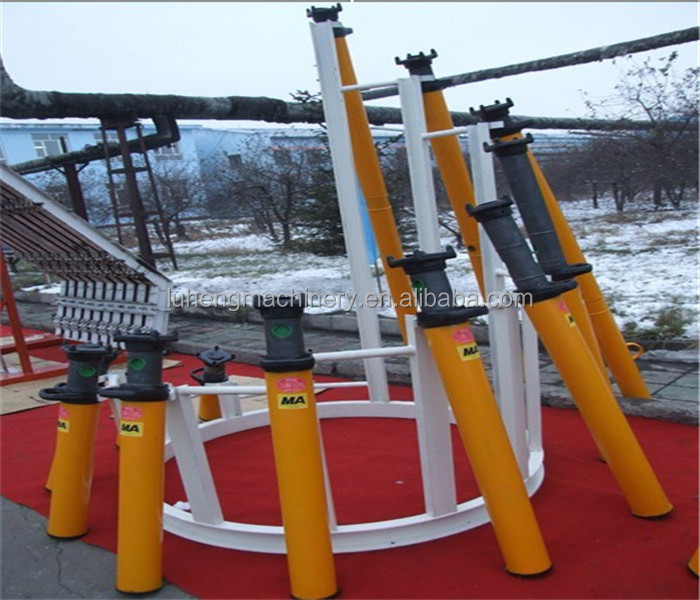

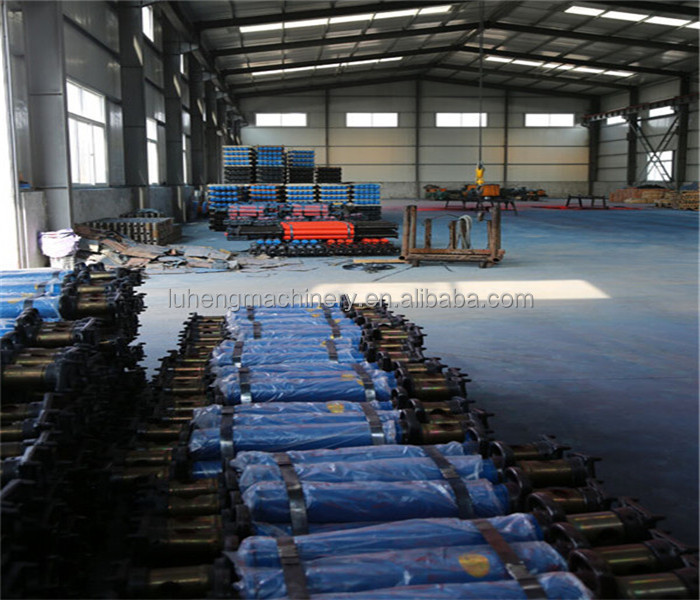

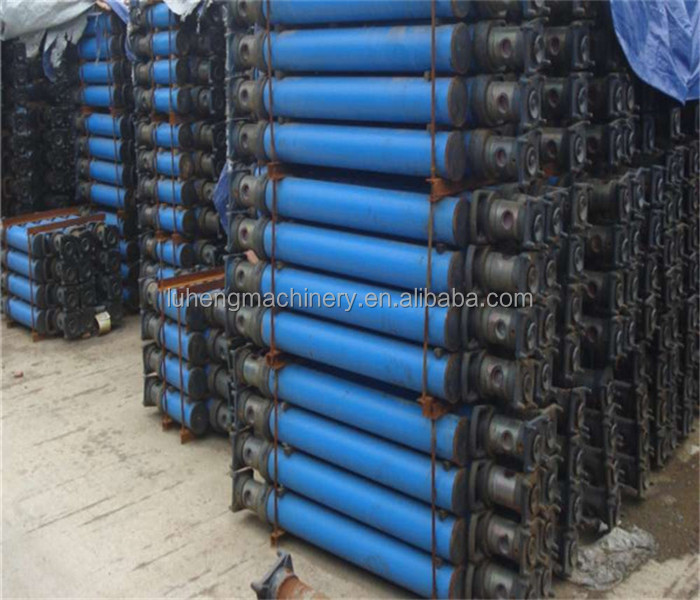

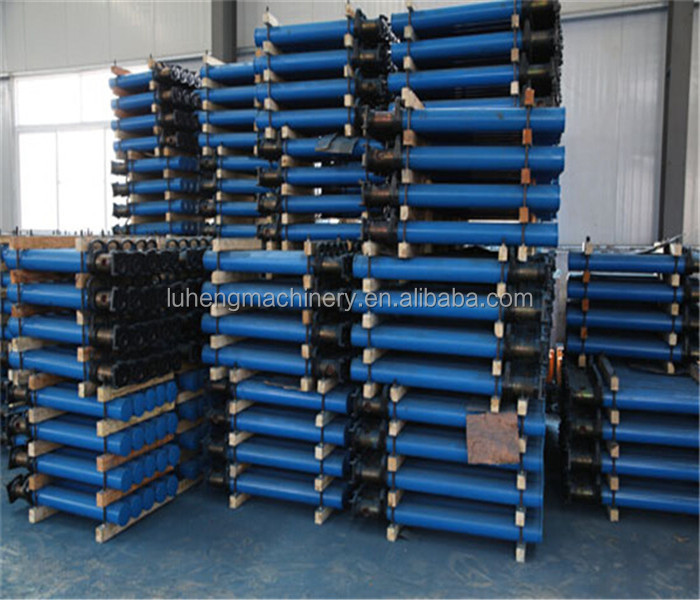

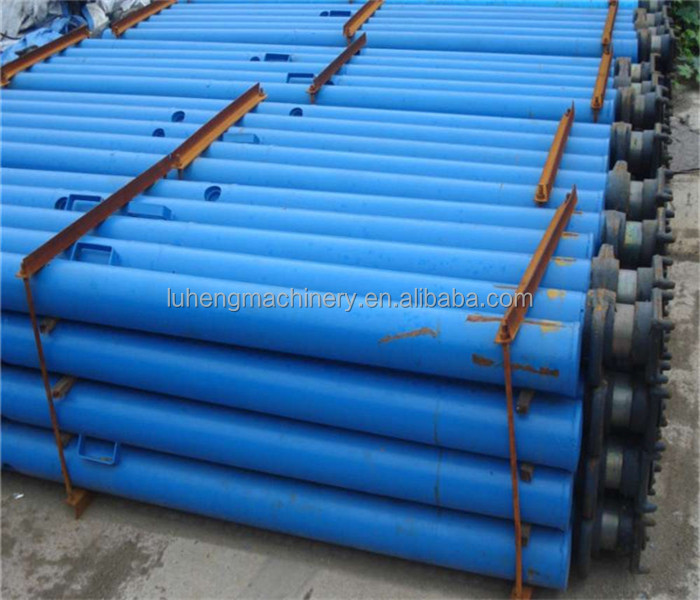

The real details photo
